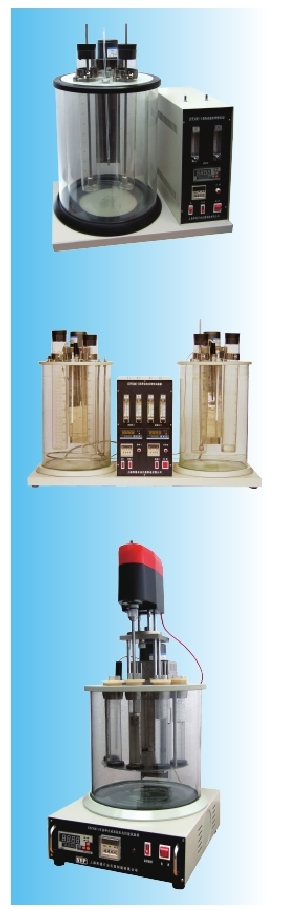

SYP3005-I 润滑油高温泡沫特性试验器

High Temperature Foaming Characteristics of Lubricating Oils Tester
适用标准 : SH/T 0722、ASTMD 6082
适用范围 : 测定润滑油(特指传动液和发动机油)在150℃时泡沫特性
技术性能 : 测定温度:150℃
控温精度:±0.5℃
气体流量:200±3 ml/min
金属扩散头渗透率:3000~6000 ml/min
加热功率:3000W
Conforming to :
  SH/T0722 ASTM D6082
Application :
  Determination of the foaming characteristics of the Lubricating Oils (specifically, transmission fluid and motor oil ) at 150°C.
Specifications :
  Testing Temp:150℃
Accuracy:± 0.5℃
Air Flow: 200 ± 3 ml/min
Permeability of gas diffuser: 3000~6000ml/min
Heating Power:3000W
SYP3006-I 润滑油泡沫特性试验器

Foaming Characteristics of Lubricating Oils Tester
适用标准 : GB/T12579、ISO6247、ASTMD892、IP146
适用范围 : 评定润滑油生成泡沫的倾向和稳定程度
技术性能 : 测定温度:24℃、93.5℃(数显)
控温精度:±0.5℃
加热功率:3000W
气体扩散头渗透率:3000~6000ml/min
Conforming to :
  GB/T12579、ISO6247、ASTMD892、IP146
Application :
  Determination of empirically rating the foaming tendency and the stability of the foam for the lubricating oils
Specifications :
  Testing temp:24℃ 93.5℃ (digital diaply)
Accuracy:± 0.5℃
Heating Power:3000W
Permeability of gas diffuser: 3000~6000ml/min
SYP3007-I 石油和合成液水分离性试验器

Water Separability of Petroleum Oils and Synthetic Fluids Tester
适用标准 : GB/T7305、ISO6014、ASTMD1401、IP412
适用范围 : 测定石油和合成液与水分离的能力
技术性能 : 加热功率:1200W
测定温度:54℃ . 82℃(数显)
控温精度:±0.5℃
搅拌转速:1500±5r/min
量筒悬挂数:5支
计时报警
试样搅拌器可翻转
Conforming to :
  GB/T7305、ISO6614、ASTMD1401、IP412
Application :
  Determination of the ability of petroleum oils or synthetic fluids to separate from water
Specifications :
  Heating Power:1200W
Testing temp:54℃ 82℃(digital display)
Accuracy:± 0.5℃
Speed of blending:1500 ± 5 r/min
Number of graduated flasks:5
Timing alarm
Test blender (turnover)
