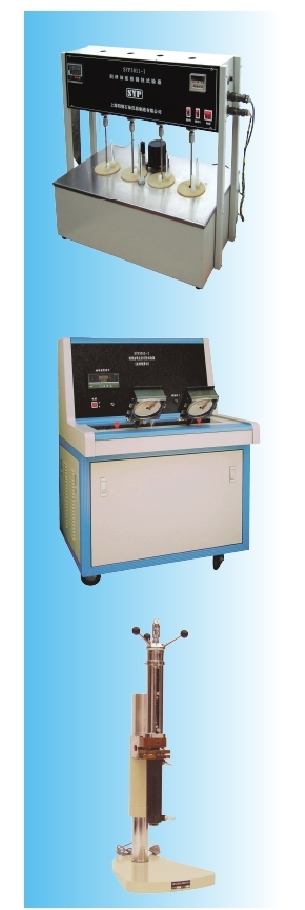

SYP3011-I 润滑油液相锈蚀试验器
|
| Rust-Preventing Characteristics of Lubricating Oil in the Presence of Water Tester |
| 适用标准 : |
GB/T11143、ISO7120、ASTMD665、IP135 |
| 适用范围 : |
评定加抑制剂矿物油,特别是汽轮机油在同水混合时对铁部件的防锈能力 |
| 技术性能 : |
加热功率:1000W
测定温度:60℃(数显)、控温精度:±1℃
搅拌转速:1000±50r/min
计时报警
试棒悬挂数:4支 |
| Conforming to : |
| |
GB/T11143、ISO7120、ASTMD665、IP135 |
| Application : |
| |
Evaluation of the ability of inhibited mineral oils, particularly steam-turbine oils, to aid in preventing the rusting of ferrous parts should water become mixed with the oil |
| Specifications : |
| |
Heating Power:1000W
Testing temp:60℃( digital display)
Accuracy:± 1℃
Speed of blending:1000 ± 50 r/min
Timing alarm
Number of test rods: 4 |
SYP3012-I 润滑油氧化安定性试验器(旋转氧弹法)
|
| Oxidation Stability of Lubricating Oil by Rotating Pressure Vessel Tester |
| 适用标准 : |
SH/T0193、ASTMD2272、IP229 |
| 适用范围 : |
用于评定具有相同组成的(基础油和添加剂)新的和使用中汽轮机油的氧化安定性、可以评定含2.6 - 二叔丁基对甲酚的新矿物绝缘油,作为其氧化安定的一种快速评定方法 |
| 技术性能 : |
加热功率:2500W
测定温度:140℃(绝缘油)150℃(汽轮机油)
控温精度:±0.1℃、氧弹旋转速度:100±5r/min
美国压力记录表:自动记录 |
| Conforming to : |
| |
SH/T0193、ASTMD2272 IP 229 |
| Application : |
| |
Evaluation of the oxidation stability of new and in-serviceturbine oils having the same composition (base stock and additives); A quick test method for the oxidation stability of new mineral insulating oil containing: 2,6-Di-tert-butyl- methylphenol |
| Specifications : |
| |
Heating Power:2500W
Testing temp:140℃(insulating oil) ; 150℃(steam turbine oils)
Accuracy: ± 0.1℃
Speed of rotating vessel:100 ± 5r/min
Pressure recorder ( US):Automatic recording |
SYP4101-I SYP4101-II (专用)润滑脂相似粘度试验器
|
| Lubricating Grease Apparent Viscosity Tester |
| 适用标准 : |
SH/T0048、Γ ОСТ 7163 |
| 适用范围 : |
测定润滑脂的相似粘度 |
| 技术性能 : |
记录器转速:0.0111, 0.195, 3.42r/min
毛细管半径:(I) 0.025, 0.05, 0.1cm
(II)0.067, 0.082, 0.101, 0.146cm |
| Conforming to : |
| |
SH/T0048 Γ ОСТ 7163 |
| Application : |
| |
Determination of apparent viscosity of lubricating grease |
| Specifications : |
| |
Speed of recorder:0.0111,0.195,3.42r/min
Radius of Capillary:(I) 0.025, 0.05, 0.1 cm
(II)0.067,0.082,0.101,0.146 cm |
